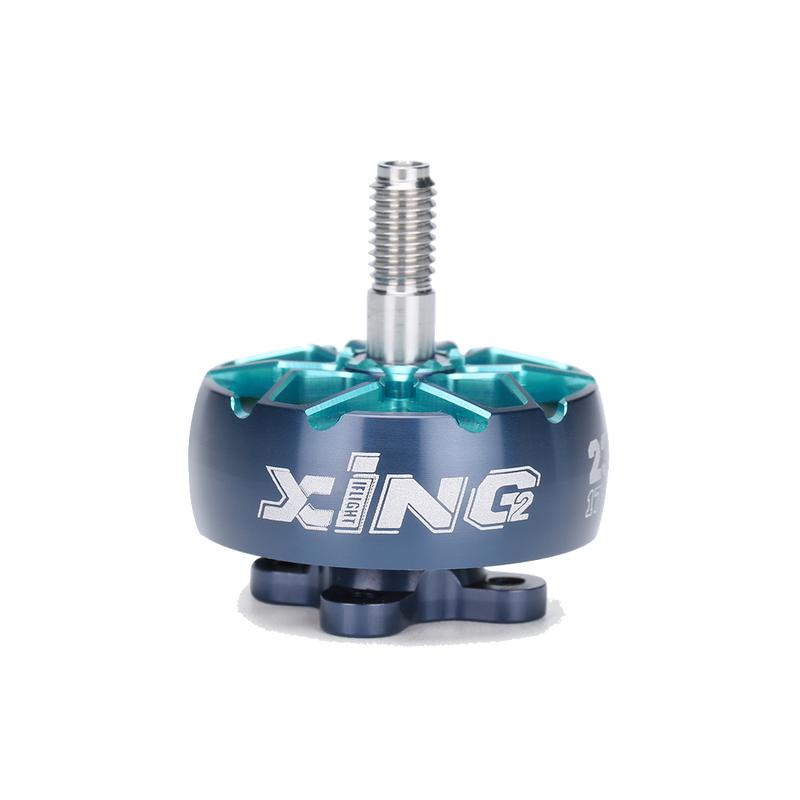

XING2 2306 1755KV 6S FPV Racing Motor | Pre-Tested 5" Freestyle

Built for 5" Freestyle. Sharp. Smooth. Reliable.

The XING2 2306 from iFlight is the gold standard for 5-inch freestyle. It's earned the "goldilocks size" reputation among experienced pilots for a reason — you get noticeably more torque than a 2207 for power loops and trippy spins, with smoother handling across the entire throttle band. No weird oscillations at low RPM, no cogging on punch-outs, just clean power delivery from 0 to 100%.

1755KV is the sweet spot for 6S. Paired with 5-inch props — whether you're running Gemfan T5146 race blades or carbon fiber 3-blade props — this KV delivers the right mix of thrust and flight time. You'll hit 75% throttle and feel the quad accelerate, not just rev. That's the XING2 Unibell construction doing its job — keeping the bell stiff and the magnetic gap tight so every watt turns into forward momentum instead of wasted vibration.

The XING2 series uses N52H arc magnets that maintain their field strength even as the motor warms up. On hot summer sessions — when budget motors start to feel soft — these hold their torque curve consistent pack after pack. The bulleted chamfered edges on the bell also reduce air resistance at high RPM, which translates to cleaner throttle response in dives and less drag on fast straights.

Specifications

User Scenarios — Build Your Perfect Setup

🎪 Scenario 1: Hard Freestyle (Trippy Spins & Power Loops)

The XING2 2306 shines in hard freestyle. The extra stator height (2306 vs 2207) gives you more torque at the low end, meaning trippy spins are easier to hold and power loops feel planted. Setup: Run 5" 3-blade carbon fiber props for grip, SpeedyBee F405 V4 + 55A stack for clean power delivery, and a 1500mAh 6S pack for 4 minutes of aggressive flying. Use a standard 5" freestyle frame like the iFlight Evoque F5 or Source One V5 with 16×16mm arm mounting. Don't skip threadlocker on the M3 screws — these motors can back them out under hard oscillation.

🏁 Scenario 2: Sunday Race Day

If you're showing up to race with 2207 motors and the field is flying 2306, you're at a torque disadvantage out of tight corners. The XING2 2306 gives you the grunt to snap out of hairpins faster without sacrificing throttle response. Setup: Switch to T5146 racing props (lightweight 2-blade, lowest rotational mass), bump your D-gain by 2-3 points for extra response, and drop to a 1300mAh 6S pack for the weight savings. The Unibell construction handles sustained high-RPM without flexing — no prop strikes from bell deformation at 40K+ RPM.

🏙️ Scenario 3: Bando / Urban Exploration

Tight spaces demand precise throttle control. The XING2's N52H magnets and low-cogging design give you smooth linear power from 0-25% throttle, which is exactly where you live in a bando — threading through windows and sliding under beams. No sudden torque spikes, no twitchy hover. Setup: Run 5" 3-blade props for extra low-end bite, a whoop-style frame bumper if you're clipping corners, and consider silicone isolation rings on the FC to filter motor harmonics from your gyro data in tight spaces where prop wash is constant.

Why Choose XING2 Over a 2207 Motor?

The 2306 stator has a larger diameter and taller stack than a 2207, which means more magnetic leverage on the rotor. In practice: more torque at low RPM (easier to hold a trick), higher peak thrust at full RPM (more margin in hard pulls), and smoother response in the mid-band. The trade-off is ~3-4g more weight per motor (~32.5g vs ~28.5g). If you're building sub-250g, go 2207. If you want the best all-around performer, pick the 2306.

Build Suggestions

These motors pair naturally with the SpeedyBee F405 V4 stack for a clean 5" freestyle build that handles 6S current without breaking a sweat. If you're building race weight, match them with Gemfan T5146 racing props for the lowest rotational mass and fastest spool-up. For freestyle grip, go 3-blade with the 5" carbon fiber props — the extra blade gives you more bite in hard turns and cleaner recovery from prop wash.

For the frame, look for a standard 5" freestyle or race frame with 16x16mm arm mounting. Use M3x6mm screws (included) and apply threadlocker — these motors spin fast enough to back a screw out if you skip it. Don't forget silicone isolation rings for your FC to filter out motor noise from your gyro data.

What's in the Box

• 4x XING2 2306 1755KV motors
• 16x M3x6mm mounting screws
