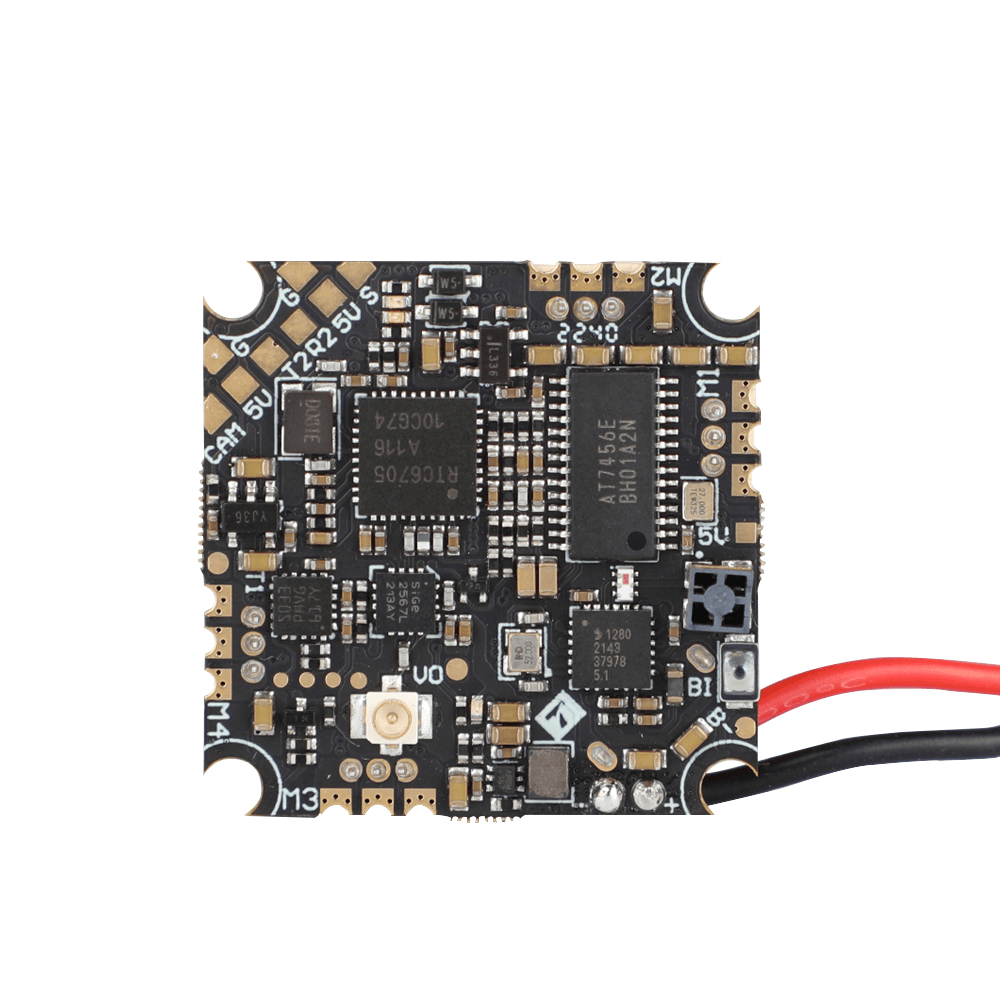

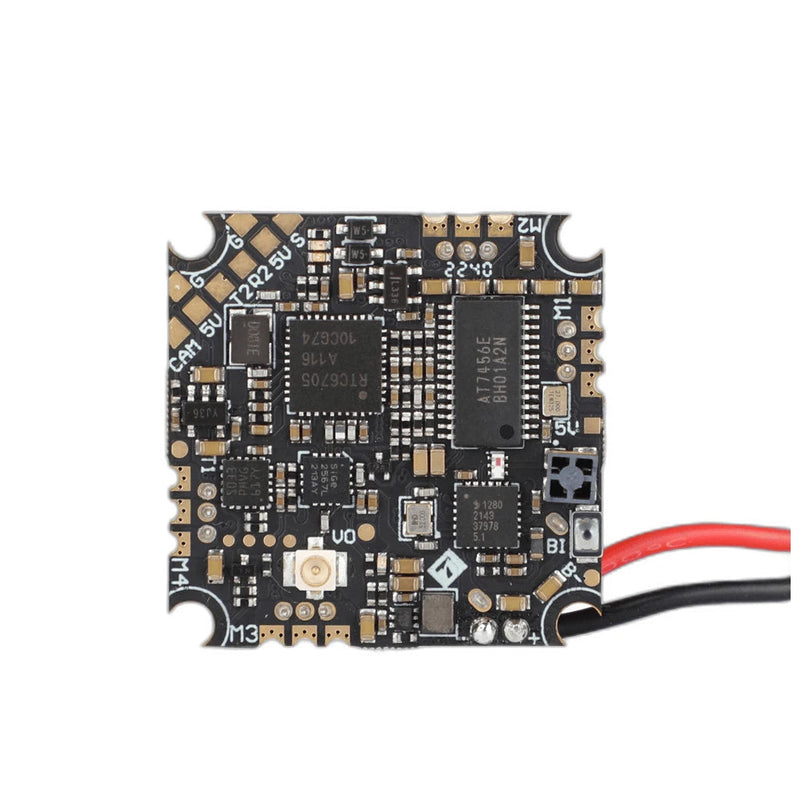

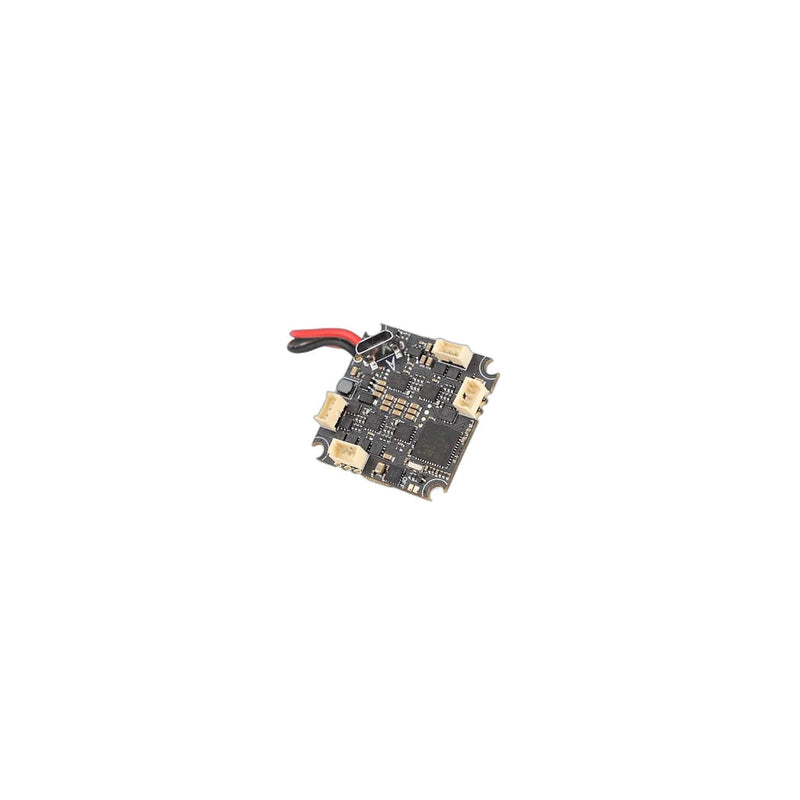

F411 AIO IS 2S 6A ELRS VTX Bluejay – All-in-One Flight Controller for Micro FPV

4.8 / 5 (130+ reviews)
$53.80

In Stock

⭐
Free shipping on orders over $60
Secure checkout · Visa, MC, AMEX, PayPal

Product Description

⭐
PILOT'S PICK
All-in-one micro build solution. FC + ESC + VTX + Receiver in a single board.
πŸ‡ΊπŸ‡Έ Ships from USA (2-5 Days) πŸ”’ Secure Checkout ↩️ 30-Day Returns

Product Overview

The F411 AIO is a compact all-in-one flight controller with built-in 6A ESC, ELRS receiver, and VTX β€” everything you need for a micro FPV build on a single board. Running Bluejay firmware, it's optimized for 1S-2S toothpick and tiny whoop builds.

Specifications

Processor STM32F411
ESC Built-in 6A BlHeli_S (Bluejay)
Receiver Built-in ELRS 2.4GHz
VTX Built-in 400mW, SmartAudio
Input Voltage 1S-2S (3.3V-8.4V)
Weight 3.5g
Mounting 25.5x25.5mm / Whoop pattern
UART 2 available

🎯 Pro-Config: F411 AIO 1S-2S 6A ELRS

βœ… Best For Sub-250g Micro builds / 1S Tiny Whoops
πŸ”„ Propeller Pairing Gemfan 1219-3 (1S) or HQProp 65mm (2S)
πŸ”‹ Battery Recommendation 1S 450mAh - 720mAh (BT2.0 Connector recommended)
πŸ’‘ Pilot Tip: "Perfect for building a 'Toothpick.' Keep your dry weight under 45g to experience the true efficiency of this AIO."

🎯 Why We Recommend the F411 AIO

  • 4 boards in 1 β€” Flight controller, ESC, VTX, and ELRS receiver. That's 4 fewer things to solder and 4 fewer points of failure.
  • Weight savings are real β€” On a 1S-2S build, every gram is precious. Eliminating separate boards and wiring saves 5-8g easily.
  • ELRS built-in β€” No external receiver needed. Long-range, low-latency control from day one.
  • Bluejay ESC firmware β€” Smooth motor control, configurable via passthrough. No separate ESC flashing needed.
Our Verdict: If you're building a micro whoop or toothpick, this board eliminates 80% of the wiring complexity. Plug in motors, bind, and fly.

Every product is tested by our team in Los Angeles.

We're FPV Pilots. Not Just a Store.
